Fluke 718-100G Pressure Calibrator Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

June Company delivers precision Fluke Pressure Calibrator 718-100G repair with traceable calibration documentation. Common issues include electrical measurement errors and internal pump wear.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

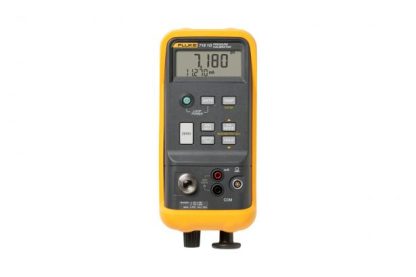

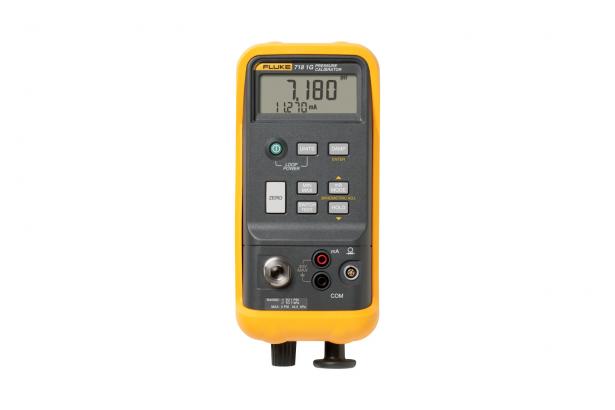

Fluke 718-100G Pressure Calibrator Repair

The Fluke 718-100G is a pressure calibrator with an integrated hand pump – the pump, the sensor and the mA loop electronics all live in one handheld body, which is what makes it a genuinely one-handed field tool and also what gives it a failure mode the pumpless models do not have. At 100 psi it covers the middle of most plant work, where it sees the widest variety of connections and therefore the most wear on ports and fittings.

June Company’s certified technicians repair the Fluke 718-100G for process technicians, refinery and plant instrument crews, and field calibration teams. Every instrument is repaired at component level and verified against reference standards before it ships back, with the measured results documented.

Common Fluke 718-100G problems we fix

Pump will not build or hold pressure – worn pump seals and O-rings, the single most common 718 repair.
Slow pressure decay – a leak in the pump body, manifold or fittings – the unit builds pressure then bleeds off.
Vacuum side not pulling – the pump’s vacuum path specifically, which often fails while the pressure side still works.
Pressure readings drifted out of tolerance – sensor drift, corrected and verified.
mA loop or 24V supply faults.
Fine-adjust vernier seized – the adjustment screw no longer trimming pressure smoothly.

FAQs

The pump builds pressure then it bleeds straight back down – fixable? Yes, and it is the most frequent repair we see on the 718. It is normally the pump seals or an O-ring in the manifold, not the sensor.

Can you rebuild the pump rather than replace the instrument? In most cases yes. The pump is a serviceable assembly and rebuilding it is far cheaper than replacement.

Every repair carries a 90-day parts-and-labor warranty, with a firm quote before any work begins. Email us or submit a service request.
