Fluke RSE300 Thermal Camera Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

Authorized Fluke Infrared Camera RSE300 repair, calibration, and restoration services. Trusted by predictive maintenance teams, electrical inspectors, building envelope consultants, and HVAC troubleshooters nationwide.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

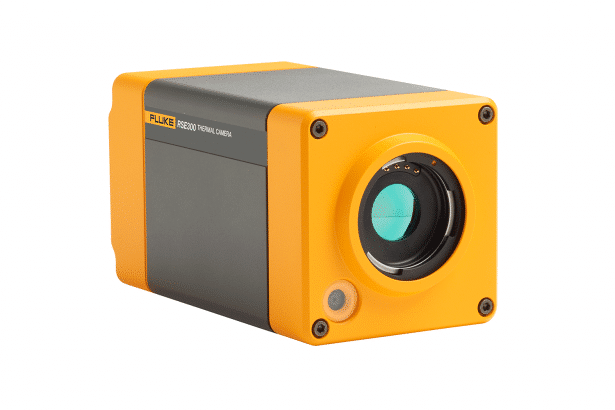

Fluke RSE300 Thermal Camera Repair

The Fluke RSE300 is a mounted, continuously-streaming thermal camera rather than a handheld – it is installed to watch a process or an asset around the clock and stream radiometric data back over the network. Being fixed and always-on changes the failure profile completely: no batteries, no drops, but constant duty and network dependence.

June Company repairs and calibrates the Fluke RSE300 for process monitoring teams, R&D laboratories, and continuous condition-monitoring programs. Every imager is repaired at component level and its temperature accuracy verified against reference standards before it ships back, with the measured results documented.

Common Fluke RSE300 problems we fix

Radiometric data not recording correctly.
Dead pixels or fixed pattern noise – microbolometer detector faults, which show as permanent spots or a grid pattern that no amount of re-focusing clears.
Image degrading between shutter cycles – the internal NUC shutter, which recalibrates the detector every few minutes – when it sticks the image drifts and blotches until the unit is power-cycled.
Temperature readings drifted – the measurement path rather than the image – a picture that looks fine can still be reporting the wrong number.
Lens or focus drive faults.
Power over Ethernet or power supply faults.
Software and API connectivity failures.
Streaming interrupted or dropping frames – the network interface and streaming stack, the fault unique to a mounted camera.

FAQs

It runs continuously. Does that shorten its life? It changes what wears rather than shortening it – the shutter mechanism and the power section see far more cycles than on a handheld.

What if it is not worth repairing? We say so in the quote. The evaluation is free and there is no obligation to proceed.

Every repair carries a 90-day parts-and-labor warranty, with a firm quote before any work begins. Email us or submit a service request.
