Fluke Ti105 Thermal Imager Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

Factory-level Fluke Infrared Camera Ti105 repair with NIST-traceable calibration. Service covers detector recalibration, lens replacement, image processor repair, laser alignment, and temperature measurement verification.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

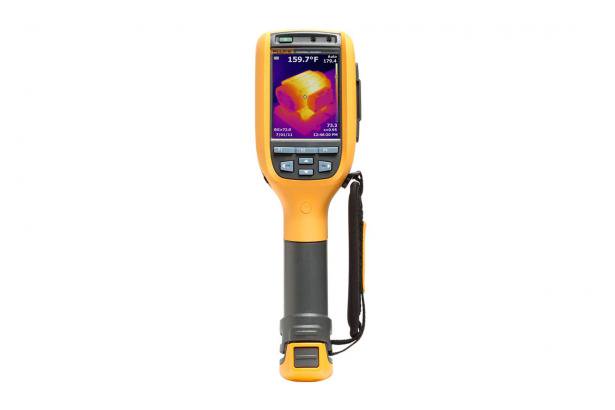

Fluke Ti105 Thermal Imager Repair

The Fluke Ti105 is a general-purpose handheld thermal imager, the tier most industrial thermography actually runs on – enough resolution and accuracy for electrical inspection, motor and bearing checks and mechanical surveys, in a body designed to be carried around a plant all day.

Certified technicians at June Company service the Fluke Ti105 for maintenance technicians, electrical contractors, predictive maintenance teams, and plant engineers. Every imager is repaired at component level and its temperature accuracy verified against reference standards before it ships back, with the measured results documented.

Common Fluke Ti105 problems we fix

Battery will not hold charge or unit will not power on – the pack, the charging circuit and the power section, tested separately.
Images not saving or SD card not recognised.
Damaged germanium lens or coating – scratches and coating loss, which reduce transmission and shift readings low.
Dead pixels or fixed pattern noise – microbolometer detector faults, which show as permanent spots or a grid pattern that no amount of re-focusing clears.
Image degrading between shutter cycles – the internal NUC shutter, which recalibrates the detector every few minutes – when it sticks the image drifts and blotches until the unit is power-cycled.
Temperature readings drifted – the measurement path rather than the image – a picture that looks fine can still be reporting the wrong number.
Focus mechanism stiff, slipping, or failing to hold.
Visible-light camera or IR-Fusion blending faults.
Display or touchscreen failure.

FAQs

Can you repair an imager that is past manufacturer support? Yes. Most of the imagers we service are out of support, and component-level repair is exactly what that situation calls for.

What if it is not worth repairing? We say so in the quote. The evaluation is free and there is no obligation to proceed.

Every repair carries a 90-day parts-and-labor warranty, with a firm quote before any work begins. Email us or submit a service request.
