Fluke TiX620 Thermal Imager Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

Component-level Fluke Infrared Camera TiX620 repair backed by a 90-day warranty. Repair includes verification of radiometric imaging and IR fusion performance.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

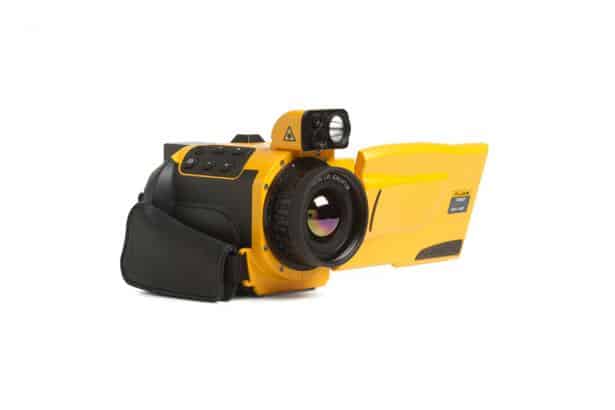

Fluke TiX620 Thermal Imager Repair

The Fluke TiX620 is an Expert-series thermal imager – the high-resolution end of the Fluke range, built around a 180-degree articulating lens block so the operator can aim the optics without contorting to see the screen. That articulation is the model’s signature feature and its most mechanical point of wear.

June Company repairs and calibrates the Fluke TiX620 for predictive maintenance teams, thermographers, and industrial inspection crews. Every imager is repaired at component level and its temperature accuracy verified against reference standards before it ships back, with the measured results documented.

Common Fluke TiX620 problems we fix

Dead pixels or fixed pattern noise – microbolometer detector faults, which show as permanent spots or a grid pattern that no amount of re-focusing clears.
Image degrading between shutter cycles – the internal NUC shutter, which recalibrates the detector every few minutes – when it sticks the image drifts and blotches until the unit is power-cycled.
Autofocus hunting or failing to lock.
Temperature readings drifted – the measurement path rather than the image – a picture that looks fine can still be reporting the wrong number.
Visible-light camera failed, breaking IR-Fusion blending.
Display or touchscreen failure.
Battery will not hold charge or unit will not power on – the pack, the charging circuit and the power section, tested separately.
Articulating lens block loose, stiff, or losing connection – the hinge and the ribbon cable running through it – the fault that belongs to this series specifically, and one that often presents as an intermittent image rather than a mechanical problem.

FAQs

Do you handle imagers that were dropped? Yes. Impact damage tends to affect the lens assembly, the display and the detector mount, and all three are repairable.

The image cuts out when I rotate the lens – mechanical or electronic? Almost always the ribbon cable through the hinge rather than the lens itself. It is a known wear point on the articulating models and it is repairable.

Every repair carries a 90-day parts-and-labor warranty, with a firm quote before any work begins. Email us or submit a service request.
