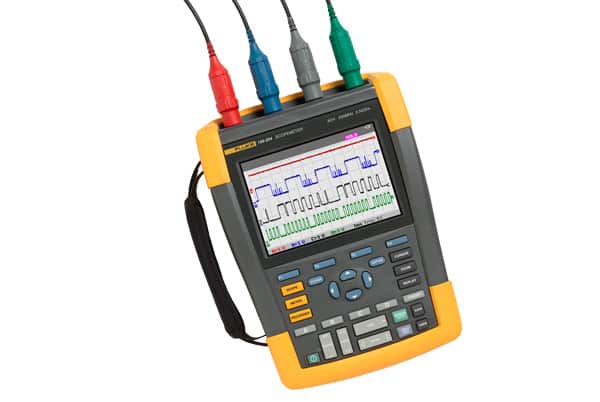

Fluke 190-504 Scopemeter Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

June Company delivers precision Fluke Scopemeter 190-504 repair with traceable calibration documentation. Our repair process covers diagnostics through final isolated inputs verification.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

Fluke 190-504 Scopemeter Repair

The Fluke 190-504 is a ScopeMeter Test Tool from the 190 series – the line built around independently isolated inputs. Each channel floats separately, which is the entire reason these instruments get bought for motor drives, power electronics and three-phase work where two probes sharing a ground would short something expensive together. This model is the 500 MHz, four-channel configuration, so its front-end and timebase are specified accordingly and are verified to that bandwidth after repair. Four isolated channels is the configuration bought for three-phase and drive work, where the channel count is the whole point.

Certified technicians at June Company service the Fluke 190-504 for field service engineers, drive and motor technicians, power electronics engineers, and industrial maintenance teams. Every instrument is repaired at component level and verified against reference standards before it ships back, with the measured results documented.

Common Fluke 190-504 problems we fix

Waveform will not trigger or hold steady – the trigger circuit, which is what turns a scope into an unusable one while every other function still appears to work.
Display failure – blank, dim, or degraded LCD – on the older ScopeMeters this often shows as banding or a faded centre before it fails outright.
Will not power on or hold charge – the battery pack and the charging circuit, tested separately since either can present as a dead instrument.
Keypad or rotary control unresponsive.
Measurements drifted out of tolerance – the measurement path, corrected and verified against reference standards.
Ruggedised case seals and connectors damaged.
Isolation between channels compromised – the fault specific to this series and the most important one to catch – a 190 with a degraded isolation barrier still displays waveforms perfectly while no longer being safe for the floating measurements it was bought for.
Channel dead, noisy, or reading inaccurately – input front-end damage, almost always from an over-range or transient input, repaired at component level and the channel re-verified.
