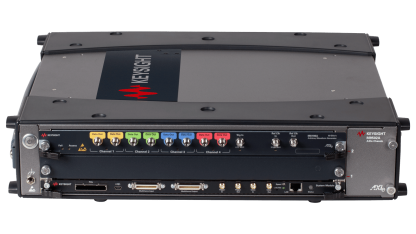

Keysight M8194A Waveform Generator Repair

$245.00 evaluation fee

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

June Company provides expert Keysight M8194A repair and calibration. Common issues include frequency synthesizer phase lock errors and modulation distortion.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Category: Signal Generator Repair Tags: 90 day warranty, authorized repair, certified service, equipment repair, fast turnaround, fix, June Company, Keysight, Keysight M8194A Waveform Generator, Keysight repair, loaner available, M8194A Waveform Generator, near me, NIST traceable, repair service, restoration, service center

Description

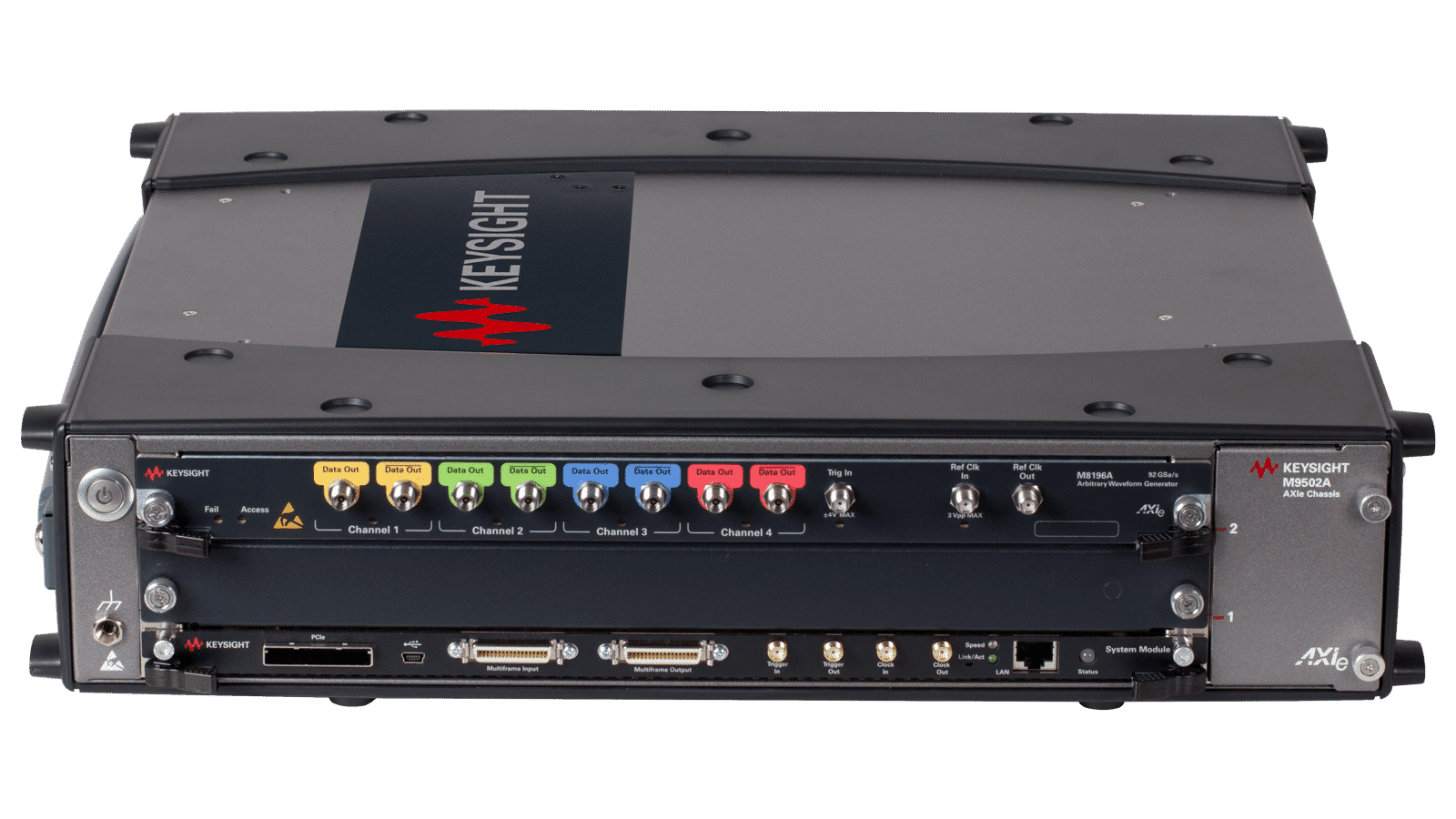

Keysight M8194A Waveform Generator Repair

The Keysight M8194A is an ultra-high-speed arbitrary waveform generator — an AXIe modular AWG with very high sample rate (to ~120 GSa/s) for generating wideband, high-baud signals in advanced communications, optical, and research applications. As a precision high-speed source, its faults concentrate in the high-speed DAC/output stage, the clock/synthesizer, and the AXIe/control interface.

June Company repairs and calibrates the Keysight M8194A for advanced communications, optical, and research teams.

Common Keysight M8194A problems we fix

Frequency-synthesizer phase-lock errors — the clock/synthesizer drifting or failing to lock, repaired and recalibrated.
Modulation / output distortion — the high-speed DAC/output stage producing distorted signals, repaired.
No output or wrong amplitude — output-stage failure, repaired.
AXIe / control-interface faults — the module not initializing in the chassis, restored.
A channel dead — per-channel faults, repaired.

FAQs

My M8194A won’t lock or output is distorted — fixable? Yes. Synthesizer and DAC/output faults are repairable, then recalibrated so timing, amplitude, and waveform fidelity are restored, with a NIST-traceable certificate.

Is the output level verified? Yes — amplitude and timing are checked against our standards.

Every repair includes NIST-traceable calibration and a 90-day parts-and-labor warranty. Email us or submit a service request.
