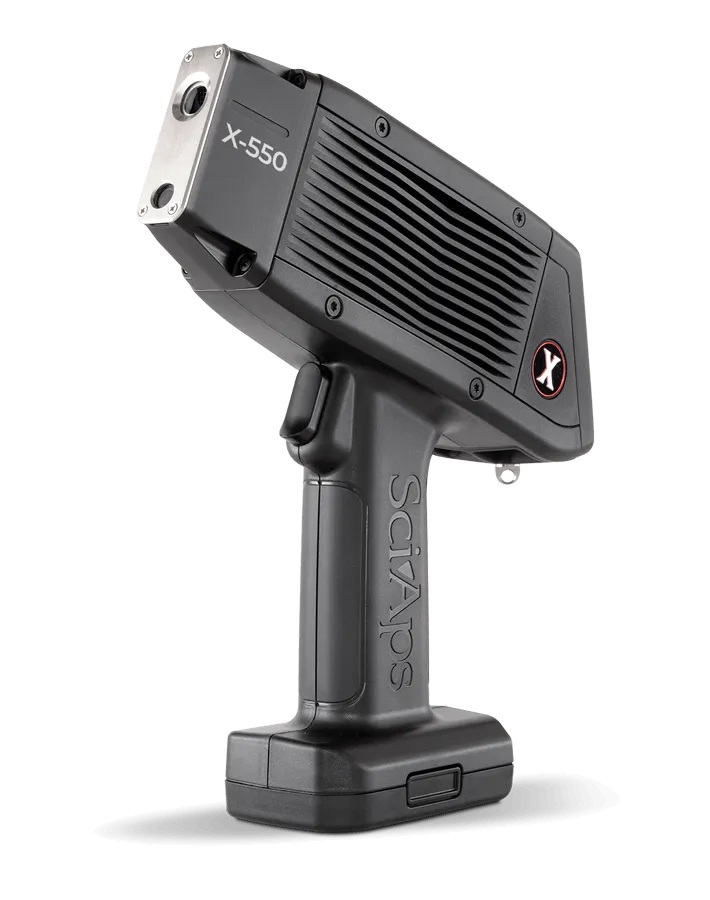

SciAps X-550 XRF Analyzer Repair

Description

SciAps X-550 XRF Analyzer Repair

The X-550 is the light-element instrument in the X-Series. It runs roughly three times the X-ray power of the X-505 in the Beam 2 low-voltage setting, which is what makes magnesium, aluminum, silicon, phosphorus and sulfur read three times faster — and what makes it the analyzer of choice for sulfidic corrosion screening, aluminum alloy sorting and residuals work to API 751 and 5L. All of that performance depends on the tube and the geometry behind it, so when an X-550 degrades, light elements are where you see it first and heavier elements can look perfectly normal for a while.

June Company’s certified technicians repair the SciAps X-550 for refinery and pipeline inspectors, sulfidic corrosion programs, aluminum sorters, and PMI contractors. We diagnose and repair at the board and component level, and every instrument is functionally tested against a known reference sample before it ships back.

Common SciAps X-550 problems we fix

• Light-element performance loss — Si, P, S, Mg and Al test times climbing or results drifting while heavier elements still read normally — the first symptom on this model.
• High-power tube degradation — the Beam 2 power advantage falling away, which is the entire reason for owning an X-550.
• Punctured or clouded measurement window — the most common failure on any handheld XRF, and one that degrades light-element results well before it fails outright.
• Detector resolution loss — peaks broadening until grade matches stop resolving cleanly against the library.
• Filter wheel and beam faults — beams not indexing, so the low-voltage setting is not doing what the app expects.
• Heat dissipation faults — the analyzer throttling under the heavier duty cycle this tube generates.
• Failed startup standardization — the analyzer no longer standardizing correctly against its calibration reference.
• Hot-swap battery faults — power interrupted mid-shift, or packs not carrying over.
• Touchscreen, trigger and proximity-interlock failures — the controls and safety interlocks that stop the analyzer firing when they fail.
• Wi-Fi, Bluetooth and USB connectivity faults — results no longer exporting or syncing to your reporting workflow.

FAQs

My sulfidic corrosion screening has slowed down. Is that the tube? Very likely. Low-silicon screening depends on Beam 2 power, and that is the first thing to check on an X-550.

Will you test light elements specifically before sending it back? Yes. On this model that is the meaningful test — heavy elements can read fine on an instrument that has lost what you bought it for.

Every repair is backed by a 90-day parts-and-labor warranty, with a firm quote before any work begins. Email us or submit a service request.
