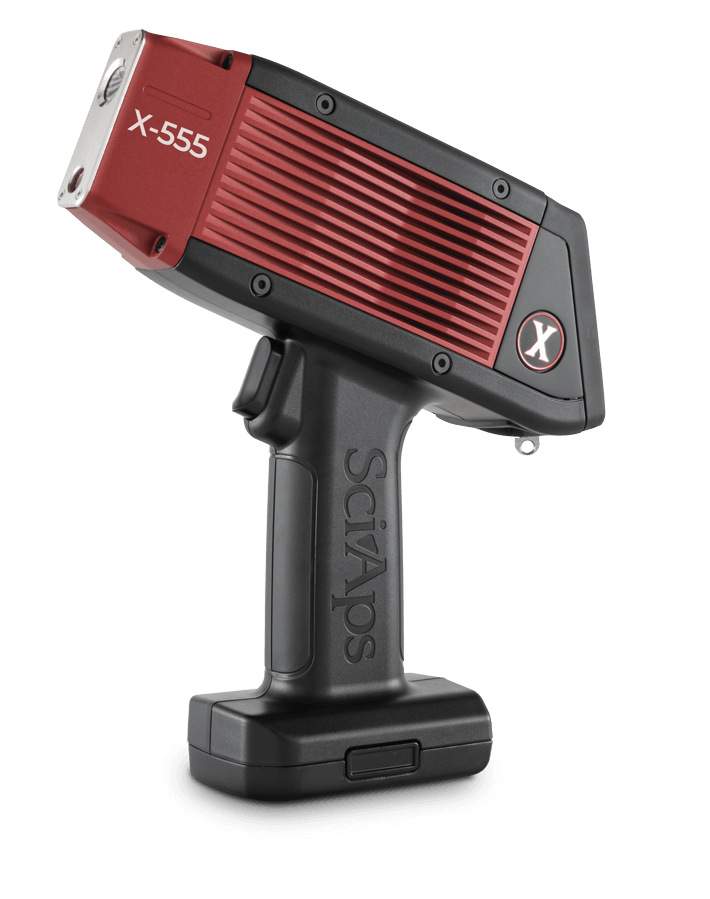

SciAps X-555 XRF Analyzer Repair

The X-555 is the 55 kV instrument in the X-Series, and the extra five kilovolts are the whole point. Light rare earth elements need excitation energy in the 40–48 keV range, which a conventional 50 kV handheld can barely reach; running the tube to 55 kV puts roughly ten times more useful energy into that range, and also drives the low detection limits this model is known for on silver, cadmium, tin, antimony and barium. Combined with 4 mm beam collimation and heavy shielding, it is a specialist instrument — and a tube fault costs you the specialism before it costs you anything else.

June Company’s certified technicians repair the SciAps X-555 for rare earth and mining exploration teams, geochemists, recyclers handling high-value streams, and analytical labs. We diagnose and repair at the board and component level, and every instrument is functionally tested against a known reference sample before it ships back.

Common SciAps X-555 problems we fix

• 55 kV tube degradation — the high-voltage capability falling off, taking REE and heavy-element sensitivity with it.
• Rare earth and trace element performance loss — Y, La, Ce, Nd and the low-LOD elements drifting while routine alloy work still looks fine.
• Beam selection faults — the automated beam settings not indexing across the range.
• Collimation faults — the 4 mm beam not landing where the operator aimed.
• Punctured or clouded measurement window — the most common failure on any handheld XRF, and one that degrades light-element results well before it fails outright.
• Detector resolution loss — peaks broadening until grade matches stop resolving cleanly against the library.
• Failed startup standardization — the analyzer no longer standardizing correctly against its calibration reference.
• Thermal shutdown and heat management faults — duty cycle dropping away in hot working environments.
• Battery and charging faults — runtime dropping, or packs not carrying over.
• Wi-Fi, Bluetooth and USB connectivity faults — results no longer exporting or syncing to your reporting workflow.

FAQs

My REE numbers have drifted but alloy testing is fine. What does that indicate? Usually the tube’s high-voltage performance. Rare earth work sits at the edge of what the instrument can do, so it degrades first.

Do you verify the 55 kV performance specifically? Yes. Testing an X-555 only on routine alloys would miss the fault most owners of this model actually care about.
