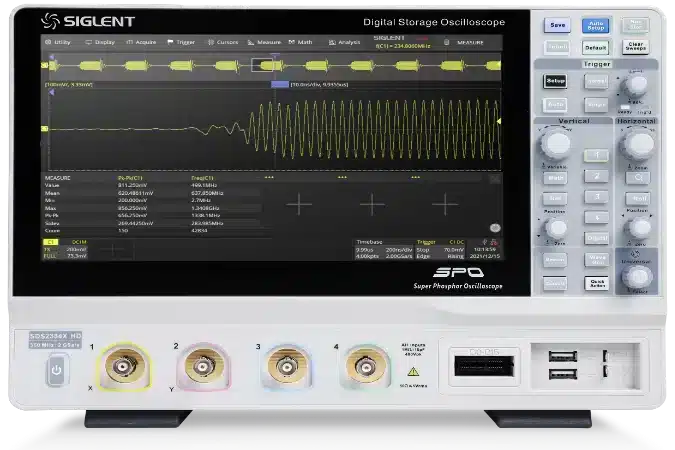

Siglent SDS2000X HD Oscilloscope Repair

Siglent Technologies is a leading provider of electronic test and measurement instruments. Their products are used in various applications, including research and development, production testing, education, and electronic repair. Here are some key Siglent products and their functionalities: Oscilloscopes: SDS1000X-E Series: These digital storage oscilloscopes offer features such as high sampling rates, large memory depth, and advanced triggering options. They are ideal for debugging and analyzing electronic circuits. SDS2000X Plus Series: These oscilloscopes provide higher bandwidth and more advanced features, including deep memory, multi-level intensity grading, and real-time waveform recording, suitable for more complex signal analysis. Function/Arbitrary Waveform Generators: SDG1000X Series: These waveform generators produce a variety of standard and arbitrary waveforms with high accuracy and stability, used for testing and simulating electronic circuits. SDG6000X Series: These high-performance generators offer higher frequency ranges, lower phase noise, and advanced modulation capabilities, making them suitable for more demanding applications. Digital Multimeters: SDM3045X: This 4½-digit digital multimeter provides accurate measurements of voltage, current, resistance, and other electrical parameters, used in electronics testing and troubleshooting. SDM3065X: This 6½-digit multimeter offers higher resolution and accuracy, suitable for more precise and demanding measurement tasks in research and development environments. Spectrum Analyzers: SSA3000X Series: These spectrum analyzers provide frequency domain analysis with features such as tracking generators, advanced measurement functions, and high sensitivity, used for RF signal analysis. SSA5000X Series: These analyzers offer higher frequency ranges, wider analysis bandwidth, and more advanced measurement capabilities for more complex RF and microwave applications. Power Supplies: SPD3303X-E: This programmable DC power supply provides three independent outputs with precise voltage and current control, used for powering and testing electronic circuits. SPM1000X Series: These high-performance power supplies offer higher power outputs and more advanced features such as arbitrary waveform generation and data logging, suitable for more demanding power testing applications. Electronic Loads: SDL1000X Series: These programmable DC electronic loads can simulate various load conditions for testing power supplies, batteries, and other power sources, offering features like constant current, voltage, resistance, and power modes. SDL1000X-E Series: These models offer similar functionality with a focus on cost-efficiency, making them suitable for more budget-conscious applications without compromising performance. Vector Network Analyzers (VNAs): SVA1000X Series: These VNAs provide network and spectrum analysis capabilities, used for characterizing RF components such as antennas, filters, and amplifiers. SNA5000X Series: These higher-end VNAs offer more advanced features, higher frequency ranges, and better performance for more complex RF and microwave analysis tasks. Handheld Instruments: SHS800 Series: These handheld oscilloscopes combine the functionality of an oscilloscope, multimeter, and data logger in a portable form factor, ideal for field testing and troubleshooting. SHS1000 Series: These models offer higher performance and more advanced features, suitable for more demanding portable measurement applications. Logic Analyzers: SLA1016: This 16-channel logic analyzer provides digital signal analysis capabilities, useful for debugging and analyzing digital circuits and communication protocols. RF Signal Generators: SGS1000X Series: These RF signal generators provide precise RF signal generation with various modulation capabilities, used for testing and calibrating RF components and systems. SGS5000X Series: These higher-end generators offer higher frequency ranges, better signal purity, and more advanced features for more demanding RF applications.
