Thermo Scientific Gemini Analyzer Repair

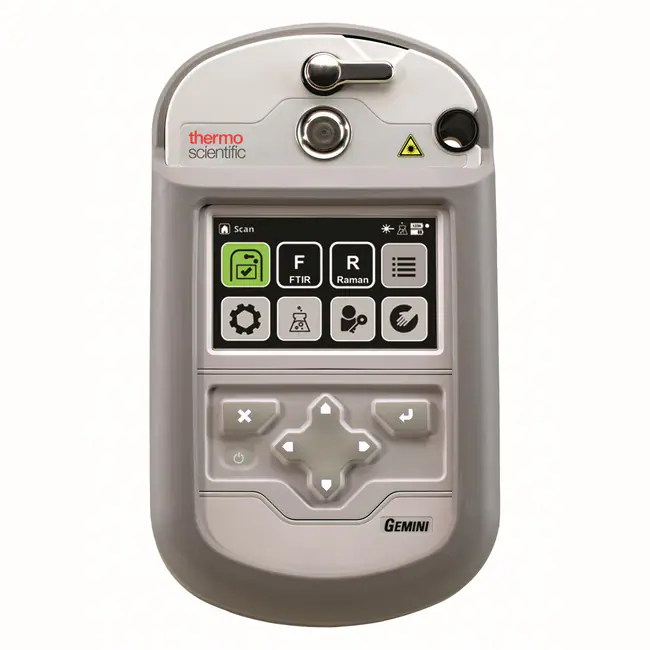

The Gemini is unusual: a single 1.9 kg handheld carrying both FTIR and Raman, covering 4,000 to 650 cm-1 on the infrared side through a single-bounce diamond ATR and 250 to 2,875 cm-1 on the Raman side, certified to MIL-STD-810G and IP67. The two techniques are complementary by design, which is why responders value it, and why it is a more involved repair than either alone. There are effectively two analytical systems inside one rugged housing sharing power, control electronics and a display, so a fault in the shared hardware can look like a failure of whichever technique you happened to be using.

June Company’s certified technicians repair the Gemini for hazmat teams, bomb squads, military CBRNE units, and emergency response agencies. We diagnose and repair at the board and component level, and every instrument is functionally tested against a known reference sample before it ships back.

Common Gemini problems we fix

• FTIR bench and interferometer faults — loss of throughput or resolution on the infrared side, often traced to alignment or the sealed bench.
• Seal and desiccant failures — moisture reaching the optical bench, which shows up as water vapor bands across the spectrum.
• Laser output degradation — excitation power falling until spectra get noisy and library match confidence drops.
• Optical alignment drift — throughput falling away after a drop or a shock, with peak positions no longer landing where the library expects.
• Detector degradation — rising noise floor and falling sensitivity, most visible on weak bands and trace components.
• Battery, charging and power faults — shortened runtime, or shutdowns partway through a shift.
• Display and touchscreen failures — dim, dead or unresponsive panels, including digitizer faults that make the interface unusable in the field.
• USB, Wi-Fi and Bluetooth communication faults — results not transferring to the host software, or the instrument not being recognized at all.
• Housing, seal and ruggedization damage — cracked enclosures and failed gaskets after a drop, which let dust and moisture inside the instrument.
• One technique failing while the other works — the fault pattern that points at shared power or control hardware rather than either analytical module.

FAQs

Raman works but FTIR returns nothing. Is that two repairs? Not necessarily. Because the two modules share power and control hardware, a single upstream fault can take out one side cleanly. We diagnose before assuming.

The FTIR side shows water vapor bands. Is the bench contaminated? Most often it is the desiccant or a seal rather than the bench itself, which is a far less invasive repair.

Do you test both techniques before returning it? Yes. Both are verified against reference samples — returning it with one side working would miss the point of the instrument.

Every repair is backed by a 90-day parts-and-labor warranty, with a firm quote before any work begins. Email us or submit a service request.
