SciAps X-50 XRF Analyzer Repair

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

Component-level SciAps X-50 repair — Rh and Au anode configurations, 20 mm² SDD, filter and tube work. Certified technicians, 90-day warranty.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

Description

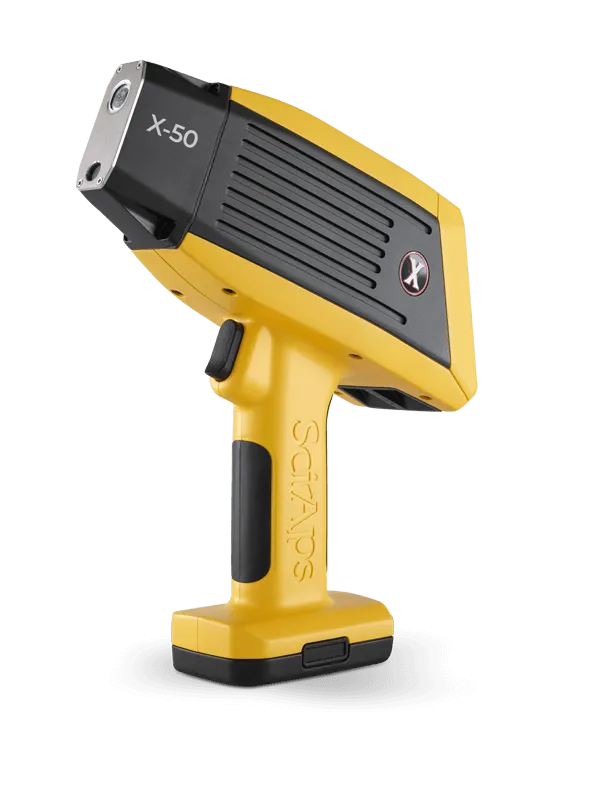

SciAps X-50 XRF Analyzer Repair

The X-50 is the reengineered value model of the X-Series: a 20 mm² silicon drift detector and digital pulse processor behind either a 40 kV rhodium anode for alloy work or a 50 kV gold anode for mining and soil, running at count rates well above comparable instruments in its class. Which anode configuration you have changes what the instrument is expected to do, so it changes how we test it before it goes back.

June Company’s certified technicians repair the SciAps X-50 for scrap and recycling operations, mining and exploration teams, environmental screeners, and PMI inspectors. We diagnose and repair at the board and component level, and every instrument is functionally tested against a known reference sample before it ships back.

Common SciAps X-50 problems we fix

Punctured or clouded measurement window — the most common failure on any handheld XRF, and one that degrades light-element results well before it fails outright.
Detector resolution loss — peaks broadening until grade matches stop resolving cleanly against the library.
X-ray tube output degradation — longer count times needed for the same precision, most visible on trace and light elements.
Failed startup standardization — the analyzer no longer standardizing correctly against its calibration reference.
Touchscreen, trigger and proximity-interlock failures — the controls and safety interlocks that stop the analyzer firing when they fail.
Anode-specific performance loss — a Rh-anode unit falling off on alloys, or an Au-anode unit falling off on soil and ore — the same tube fault presenting differently by configuration.
Filter and beam selection faults — beam settings not indexing to the selected application.
Battery and charging faults — runtime dropping, or charging failing in or out of the instrument.
Thermal shutdown and heat management faults — duty cycle dropping away in hot working environments.
Wi-Fi, Bluetooth and USB connectivity faults — results no longer exporting or syncing to your reporting workflow.

FAQs

Which anode does my X-50 have, and does it matter for repair? It matters for testing. Rh-anode units are built for alloy work and Au-anode units for mining and soil, and we functionally test against whichever applies.

Results have become slow rather than wrong. Is that still a fault? Yes, and usually a tube or detector one. Count rate falling off shows up as longer tests before it ever shows up as bad numbers.

Every repair is backed by a 90-day parts-and-labor warranty, with a firm quote before any work begins. Email us or submit a service request.
