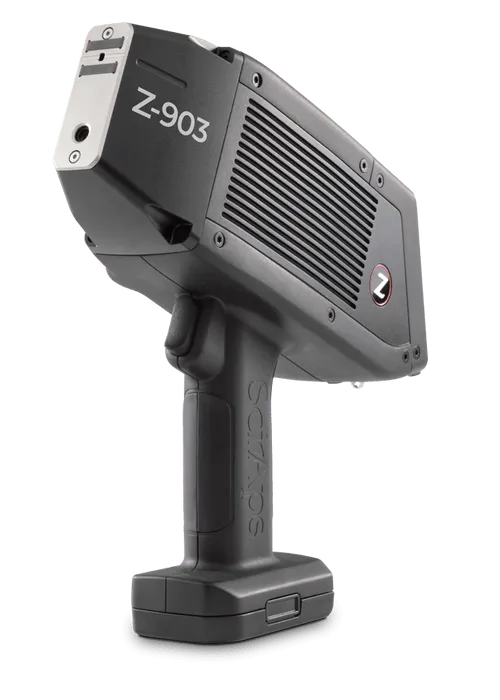

SciAps LIBS Z-903 Analyzer Repair

Description

SciAps LIBS Z-903 Analyzer Repair

The Z-903 is the three-spectrometer instrument, spanning roughly 190–950 nm and reaching every element in the periodic table — hydrogen, fluorine, chlorine, bromine, nitrogen, oxygen, sulfur, rubidium, caesium and potassium on top of everything the Z-902 measures. It carries an internal 316 stainless check standard for calibration and wavelength-scale validation, which is genuinely useful in diagnosis: it tells us whether the wavelength scale has moved before we start looking at the sample side at all.

June Company’s certified technicians repair the SciAps Z-903 for geochemists, mining and exploration teams, oil and gas laboratories, and research groups. We diagnose and repair at the board and component level, and every instrument is functionally tested against a known reference sample before it ships back.

Common SciAps Z-903 problems we fix

• Spectrometer drift across the stack — one of the three spectrometers moving, so a specific slice of the wavelength range degrades while the rest holds.
• Wavelength scale validation failures — the internal 316 stainless check standard no longer validating.
• Laser output degradation — weak or inconsistent ablation, showing up as unstable results before it shows up as no result at all.
• Argon purge and Opti-Purge faults — leaks or restricted flow, which hit UV-range performance hardest.
• Optical path and fiber contamination — plasma light not reaching the spectrometer cleanly.
• Extended-range element loss — H, F, Cl, Br, S and the halogens dropping out while the mid-range elements still read.
• Ablation window and spark-position faults — the laser no longer focusing at the correct standoff.
• Laser raster stage faults — targeted micro-analysis no longer landing where it is aimed.
• Laser safety interlock and sample sensor faults — the analyzer refusing to fire — working as designed, and repairable.
• Battery and charging faults — runtime dropping, or shutdowns partway through a shift.

FAQs

The internal check standard fails on startup. Is that a calibration or a hardware problem? Usually hardware, and it is a helpful failure — it points at the spectrometer or wavelength scale before you have wasted samples chasing it.

I only lost the halogens and sulfur. Is that a whole-instrument fault? Not necessarily. The Z-903 uses three spectrometers, and losing a defined slice of the range usually means one of them rather than all three.

Every repair is backed by a 90-day parts-and-labor warranty, with a firm quote before any work begins. Email us or submit a service request.
