Description

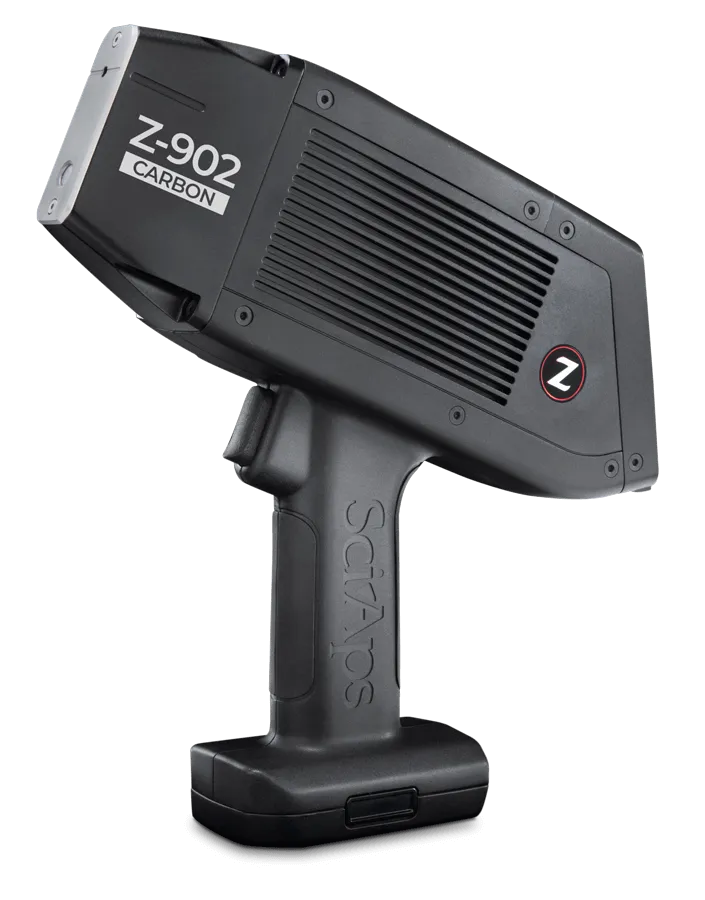

SciAps LIBS Z-902 Analyzer Repair

The Z-902 is the carbon instrument. Two spectrometers extend the range to roughly 190–620 nm, and combined with SciAps’ patented Opti-Purge argon delivery it identifies stainless and low alloy steels with carbon down to about 70 ppm and instant carbon equivalency — the capability XRF cannot deliver at all. Opti-Purge is also why the argon path is the first thing we look at: it places gas exactly where it is needed and uses a fraction of what a spark OES would, so a small leak or restriction that would be invisible on another instrument shows up directly in your carbon numbers.

June Company’s certified technicians repair the SciAps Z-902 for PMI inspectors, weld shops, refinery and pressure-vessel teams, and steel fabricators. We diagnose and repair at the board and component level, and every instrument is functionally tested against a known reference sample before it ships back.

Common SciAps Z-902 problems we fix

Argon purge and Opti-Purge faults — leaks, restrictions or canister-seating problems — carbon accuracy depends entirely on purge quality.
Carbon performance loss — carbon and carbon equivalency drifting or scattering while other elements still read normally.
Laser output degradation — weak or inconsistent ablation, showing up as unstable results before it shows up as no result at all.
Optical path and fiber contamination — plasma light not reaching the spectrometer cleanly.
Dual spectrometer faults — one of the two spectrometers drifting, so part of the range degrades and part does not.
QuickSort air-burn faults — rapid sorting mode not switching in or producing inconsistent grade IDs.
Ablation window and spark-position faults — the laser no longer focusing at the correct standoff.
Laser safety interlock and sample sensor faults — the analyzer refusing to fire — working as designed, and repairable.
Battery and charging faults — runtime dropping, or shutdowns partway through a shift.
Targeting and macro camera faults — the internal camera no longer aiming the laser accurately on small features.

FAQs

My carbon numbers are unstable but the other elements look fine. What is that? That pattern usually points at the argon purge or the laser rather than the spectrometer. Carbon is the element most sensitive to purge quality, which makes it the first symptom.

How many tests should I get from an argon canister? Roughly 600 for general alloy work and 125–200 for carbon. If yours is falling well short of that, treat it as a leak rather than a consumable problem.

Will you verify carbon specifically before returning it? Yes. On a Z-902 that is the meaningful test.

Every repair is backed by a 90-day parts-and-labor warranty, with a firm quote before any work begins. Email us or submit a service request.
