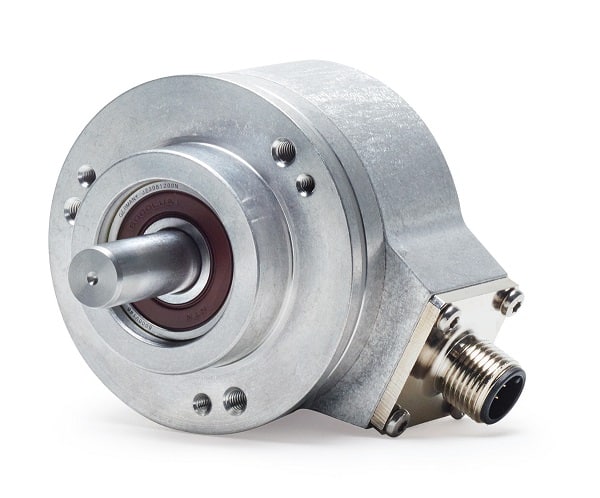

Heidenhain Encoder Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

Ship your Heidenhain to June Company for professional repair and NIST-traceable calibration. Repair includes verification of phasing and resolution performance.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

Heidenhain Encoder Repair Services

The Heidenhain is a critical instrument used by CNC machine shops, robotics integrators, packaging machine manufacturers, and industrial automation teams. When this equipment fails or drifts out of specification, June Company delivers expert repair and NIST-traceable calibration to restore full operational accuracy.

About the Heidenhain

As a servo encoder instrument, the Heidenhain is designed for demanding applications. Specifically, servo encoders provide precise rotary or linear position feedback to servo drives, enabling accurate motion control in CNC machines, robotics, and automated manufacturing. Accurate and reliable performance is essential — measurement drift or component failure can cause costly errors, compliance issues, and project delays.

Common Servo Encoder Issues We Repair

Our repair process addresses the root cause of every issue:

Bearing wear causing shaft runout: addressed with OEM-grade components and verified against traceable standards
Signal output degradation: repaired by technicians experienced with Heidenhain instrumentation
Connector damage: resolved through targeted diagnostics and precision repair techniques
Optical disc contamination: diagnosed through systematic testing and resolved with component-level repair
Led source degradation: identified during our multi-point inspection and corrected to restore specification performance

Calibration and Performance Verification

Calibration is integral to our repair process. Your Heidenhain is tested for index pulse, phasing, and resolution accuracy, with all results recorded and provided with the returned instrument.

Why Choose June Company for Heidenhain Repair?

Customers choose June Company for our depth of technical expertise:

Traceable Calibration: NIST-traceable calibration certificates included with every repair
90-Day Warranty: All repairs backed by our parts and labor warranty
Fast Turnaround: Most repairs completed in 5–10 business days
OEM-Grade Parts: Genuine or equivalent components for lasting reliability
Category Specialists: Dedicated experience with servo encoder equipment from Heidenhain and related manufacturers
Component-Level Repair: We diagnose and repair at the board and component level, not just swap modules

How Our Repair Process Works

Free Evaluation: Ship your Heidenhain to our facility. We provide a detailed assessment and firm quote at no cost.
Expert Repair: Certified technicians perform optical system cleaning, LED replacement, bearing service, signal output restoration, and accuracy verification on test bench.
Calibration: Full NIST-traceable calibration with documented results across all critical parameters.
Quality Verification: Final functional testing confirms your instrument meets or exceeds original specifications.
Return Shipment: Securely packaged and shipped with calibration certificate and repair documentation.

Industries We Serve

The Heidenhain is used by CNC machine shops, robotics integrators, packaging machine manufacturers, and industrial automation teams. June Company understands the operational demands of these fields and the importance of keeping critical test equipment in service.

Request a Repair Quote

Contact June Company for professional Heidenhain repair and calibration. Our team is ready to evaluate your instrument and provide a no-obligation quote.

Email: info@juneusa.com

Brand

Heidenhain Repair

Heidenhain is a renowned manufacturer specializing in precision measurement and control technology. Their products are widely used in various industries, including machine tool, semiconductor, electronics, and medical technology. Heidenhain's offerings are known for their high accuracy, reliability, and advanced technological features. Here's an overview of Heidenhain's key product categories and their functionalities: 1. Encoders Rotary Encoders Features: Provide precise angular position information, used for controlling rotary movements. Popular Models: ERN/ECN/ROC Series: High-resolution encoders for demanding applications. Applications: Machine tools, robotics, automation systems, and motor feedback. Linear Encoders Features: Offer precise linear position measurement, essential for high-accuracy positioning. Popular Models: LS/LC Series: Robust encoders for various industrial environments. Applications: CNC machine tools, semiconductor equipment, and coordinate measuring machines (CMMs). Angle Encoders Features: Provide high-precision angular position measurements, crucial for applications requiring fine accuracy. Popular Models: RAE/RA/RON Series: Suitable for applications requiring high resolution and accuracy. Applications: Precision rotary tables, telescopes, and printing machines. 2. Digital Readouts (DROs) Digital Readout Systems Features: Provide accurate position feedback and display for manual machine tools. Popular Models: ND Series: Versatile systems with advanced features for milling, turning, and grinding machines. Applications: Manual machine tools, small CNC machines, and measuring stations. 3. TNC Controls CNC Controls Features: Advanced control systems for CNC machine tools, offering high precision and user-friendly operation. Popular Models: TNC 640: High-performance control for milling and turning applications. TNC 620: Compact and versatile control for milling machines. Applications: Milling machines, machining centers, and multitasking machines. 4. Touch Probes and Tool Setters Workpiece Touch Probes Features: Enable precise measurement and alignment of workpieces in CNC machines. Popular Models: TS Series: Reliable and accurate probes for various applications. Applications: Workpiece setup, in-process measurement, and quality control. Tool Setters Features: Measure and monitor tool dimensions and wear in CNC machines. Popular Models: TT Series: Durable and precise tool setters for different machining environments. Applications: Tool setup, tool monitoring, and machine calibration. 5. Length Gauges Length Measuring Systems Features: Provide precise measurement of lengths and dimensions for various applications. Popular Models: ACANTO Series: Robust gauges with high accuracy for industrial applications. Applications: Inspection stations, quality control, and production monitoring.
