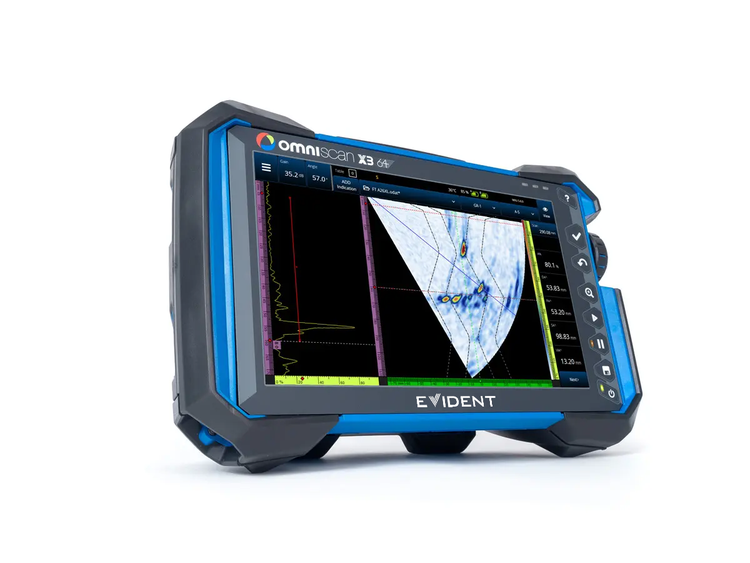

Evident OmniScan X3 64 Flaw Detector Repair

The OmniScan X3 64 is the high-channel-count member of the X3 family, built to drive 64-element phased array probes fully and to support a 128-element aperture for total focusing method imaging. In the 64:128PR configuration it provides 64 pulsers, 128 receivers, 128 TFM elements and two conventional UT channels, with up to eight groups of which four can be TFM, across a 0.2 to 26.5 MHz bandwidth. More channels means more connector pins and more pulser circuitry, and that is where most of its faults live.

June Company’s certified technicians repair the OmniScan X3 64 for NDT service companies, advanced inspection teams, pipeline and pressure vessel inspectors and aerospace inspection groups. We diagnose and repair at the board and component level, and every instrument is functionally verified before it ships back.

Common OmniScan X3 64 problems we fix

• Connector pin faults — with 64 elements in play, a handful of worn pins produce aperture dropouts that are easy to blame on the probe.
• Pulser and receiver channel faults — individual channels failing across the 64:128 architecture, degrading TFM images before anything looks broken.
• Touchscreen and display faults — digitizer or panel failure on an instrument that is driven almost entirely by touch.
• TFM processing and thermal faults — throttling or instability under sustained total focusing method acquisition.
• SSD and data storage faults — large TFM datasets failing to write, or stored scans becoming unreadable.
• Encoder interface faults — position data dropping out, which corrupts encoded scan geometry.
• Battery and power faults — runtime loss under the higher power draw of full 64-channel operation.
• Communication faults — USB, Ethernet or wireless transfer failing on large data sets.
• Housing and sealing damage — enclosure and gasket damage compromising environmental protection.
• Calibration faults — the instrument no longer calibrating consistently against reference blocks.

FAQs

How do you find a single bad channel out of 64? Systematically, against a known-good probe and reference blocks. Element-by-element testing is the only reliable way, and it is what separates a real diagnosis from a parts swap.

Is TFM performance testable after repair? Yes. We verify TFM acquisition and imaging, not just conventional phased array, before the instrument ships back.

Do you service the standard X3 and X4? Yes, the whole OmniScan family.

Every repair is backed by a 90-day parts-and-labor warranty, with a firm quote before any work begins. Email us or submit a service request.
