Hioki IM7580A Impedance Analyzer Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

Ship your to June Company for professional repair and NIST-traceable calibration. Service covers measurement bridge recalibration, frequency source repair, fixture interface restoration, and traceable impedance verification.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

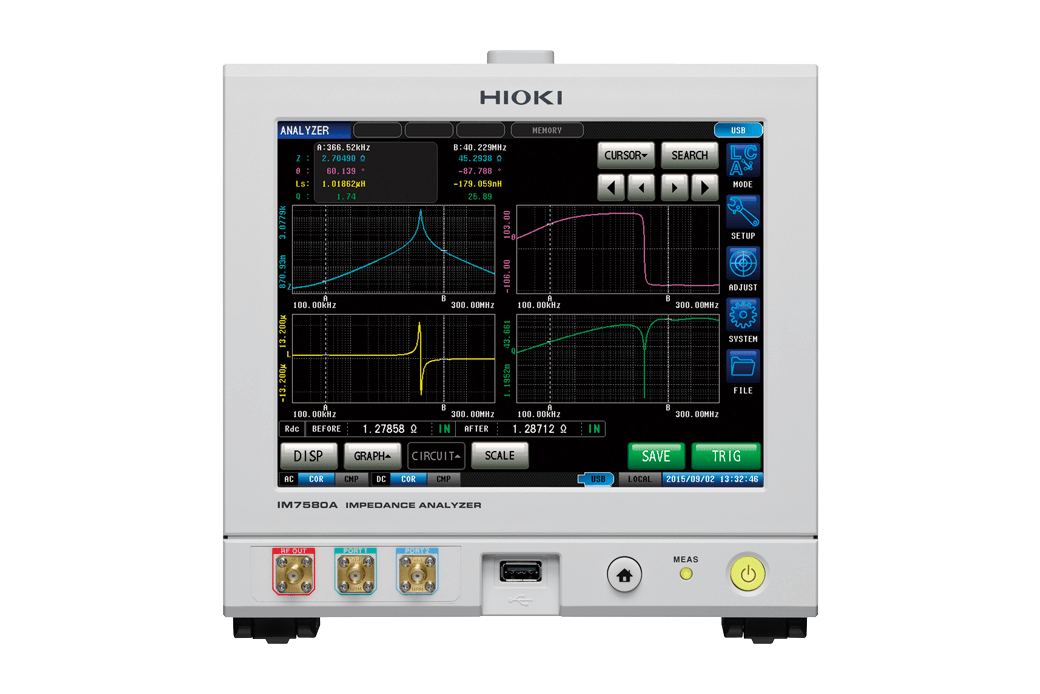

Hioki IM7580A Impedance Analyzer Repair

The Hioki IM7580A is a high-frequency impedance analyzer — it measures impedance and related parameters across a wide RF frequency range (to ~3 GHz) for characterizing components, materials, and resonators with high speed and accuracy. As a precision impedance-measurement instrument, its faults concentrate in the measurement bridge/front-end, the frequency (test-signal) source, and the test-fixture interface.

June Company repairs and calibrates the Hioki IM7580A for component-test, materials, and R&D teams.

Common Hioki IM7580A problems we fix

Measurement-bridge drift — impedance readings out of spec, the bridge recalibrated against standards across frequency.
Frequency-source faults — wrong or missing test-signal level/frequency, repaired.
Test-fixture / port faults — the fixture interface causing erratic readings, serviced.
Open/short/load compensation faults — the compensation that ensures accuracy, restored.
Display or interface faults.

FAQs

My IM7580A impedance readings are off — fixable? Yes. Measurement-bridge and source faults are repairable, then recalibrated across frequency so impedance measurements are accurate, with a NIST-traceable certificate.

Is it calibrated across frequency? Yes — verified against our standards across its range.

Every repair includes NIST-traceable calibration and a 90-day parts-and-labor warranty. Email us or submit a service request.
