Chroma 63800R Electronic Load Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

June Company delivers precision Chroma 63800R repair with traceable calibration documentation. Repair includes verification of constant current and constant voltage performance.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

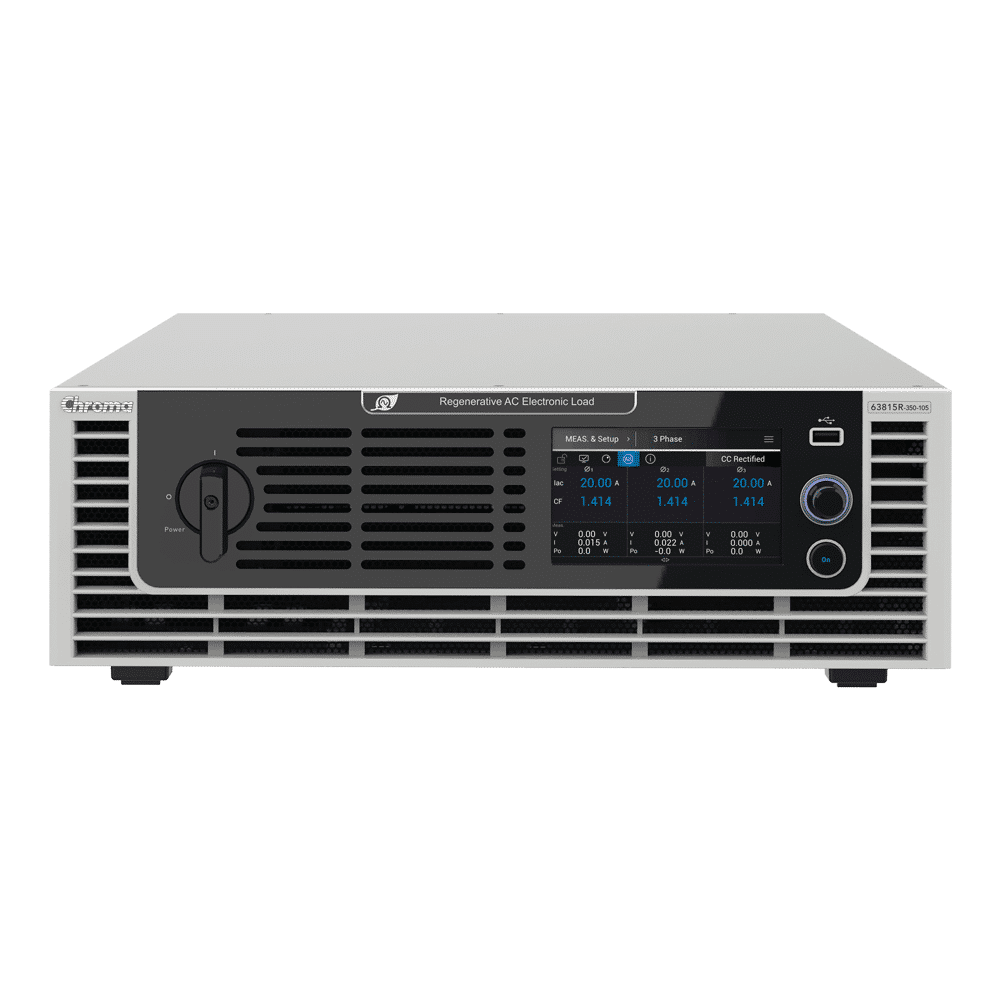

Chroma 63800R Electronic Load Repair

The Chroma 63800R is a regenerative AC & DC electronic load — it sinks AC and DC current (with programmable power factor and crest factor) while returning the absorbed energy to the grid, used to test AC sources, UPS systems, inverters, and power supplies efficiently. Its character is regenerative AC-capable current sinking, so faults concentrate in the load stage, the regenerative/PF control, and measurement.

June Company repairs and calibrates the Chroma 63800R for AC-source, UPS, and inverter test teams.

Common Chroma 63800R problems we fix

Constant-current / CC-mode faults — the CC loading not regulating correctly, repaired and verified.
Won’t sink rated AC/DC current — load-stage failure, repaired so it sinks full rated load.
Regenerative / bidirectional faults — the power electronics that return energy, repaired.
Power-factor / crest-factor control faults — the AC-loading control, repaired.
Readback inaccurate — measurement drift, recalibrated.

FAQs

My 63800R won’t load in CC or regenerate correctly — fixable? Yes. Load-stage and regenerative-control faults are repairable, then verified so it loads with correct CC/PF and returns energy, with a NIST-traceable certificate.

Is AC and DC loading verified? Yes — both are checked against our standards.

Every repair includes NIST-traceable calibration and a 90-day parts-and-labor warranty. Email us or submit a service request.
