Keithley 2281S Power Supply Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

Component-level Keithley 2281S repair backed by a 90-day warranty. Repair includes verification of line regulation and remote sensing performance.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

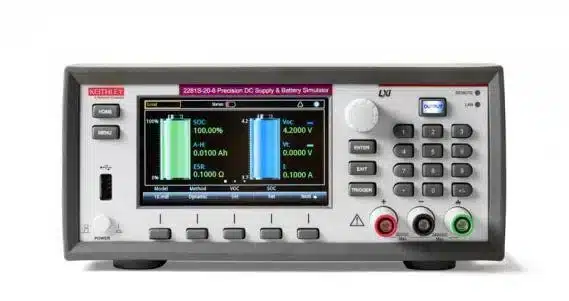

Keithley 2281S Power Supply Repair

The Keithley 2281S Power Supply is a programmable power supply – it holds a commanded voltage or current under whatever load the device under test presents, and switches between constant-voltage and constant-current regulation as that load changes. The output stage does the work, and it is where the heat and the wear concentrate.

Certified technicians at June Company service the Keithley 2281S Power Supply for test engineers, production test departments, R&D laboratories, and equipment manufacturers. Every instrument is repaired at component level and verified against reference standards before it ships back, with the measured results documented.

Common Keithley 2281S Power Supply problems we fix

Current limit not holding at the set value.
Output relay not switching.
Cooling fan or thermal shutdown.
Internal power supply faults.
GPIB, LAN, USB or remote-control faults – which breaks automated test sequences while the instrument still works from the front panel.
Display, keypad or front-panel faults.
Output voltage or current out of tolerance under load – a supply can read correct on its own display while delivering something else to the load – readback and actual output are separate circuits and they drift separately.
Will not regulate, or oscillates between CV and CC.
Excessive ripple or noise on the output – invisible on the front panel and capable of corrupting whatever is being powered.
Output stage or pass-element failure.

FAQs

How long does a repair take? Most are completed in 5-10 business days, with a firm quote after evaluation and before any work begins.

Are the measurements verified after repair? Yes, against reference standards, with the measured results documented and returned with the instrument.

Every repair carries a 90-day parts-and-labor warranty, with a firm quote before any work begins. Email us or submit a service request.
