Keithley 2230 Power Supply Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

Get your Keithley 2230 repaired with certified accuracy and a 90-day warranty. Critical for electronics labs, production test facilities, R&D departments, and educational institutions who depend on reliable power supply performance.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

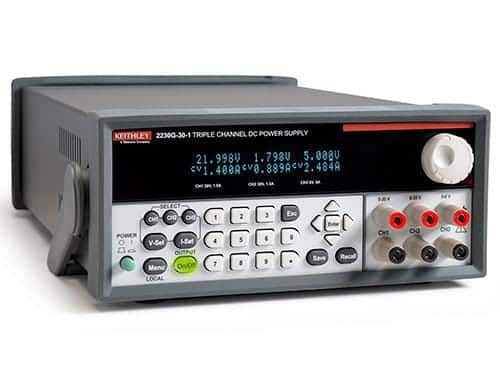

Keithley 2230 Power Supply Repair

The Keithley 2230 is a triple-output programmable DC power supply — a bench supply with three independent isolated outputs for powering multiple rails (e.g. positive, negative, and logic) in one unit, common in design and test labs. Its character is multiple regulated outputs under programmable control, so faults concentrate in the individual output stages, regulation, and the control interface.

June Company repairs and calibrates the Keithley 2230 for design and test engineers.

Common Keithley 2230 problems we fix

One output dead or won’t reach setpoint — output-stage failure on a channel; the others still work, the giveaway. Repaired so all three outputs source rated voltage and current.
Output unstable or noisy — regulation-loop degradation on a channel, recalibrated.
Readback inaccurate — measurement drift, recalibrated.
Won’t program or communicate — remote-interface faults, restored.
Display or control faults.

FAQs

One of my three outputs is dead — fixable? Yes. A single dead output is a common 2230 repair; we restore it and recalibrate all three channels, with a NIST-traceable certificate.

Are all outputs verified? Yes — each channel’s voltage and current are checked against our standards.

Every repair includes NIST-traceable calibration and a 90-day parts-and-labor warranty. Email us or submit a service request.
