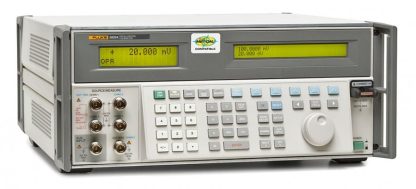

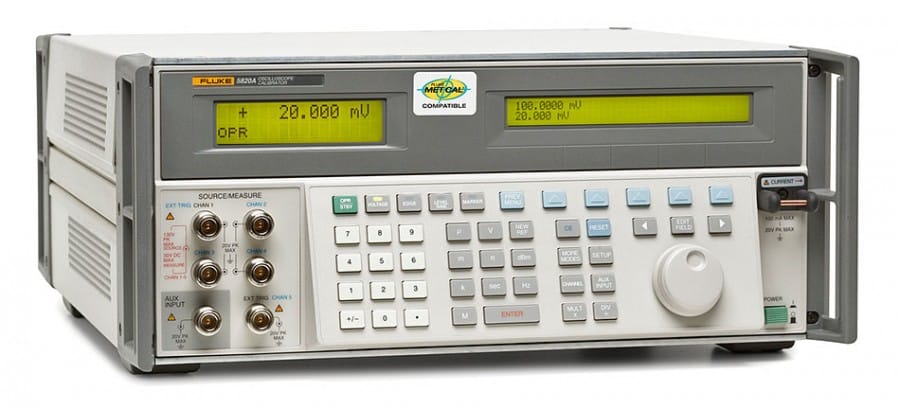

Fluke 5800A Oscilloscope Calibrator Repair
June Company provides expert Fluke 5800A Oscilloscope Calibrator repair services. The 5800A is a precision instrument used for calibrating a wide range of analog and digital oscilloscopes. When this unit malfunctions, it can delay critical calibration tasks and compromise measurement accuracy.
Common Issues We Repair
-
No Output or Inaccurate Signals: Calibration signals are missing or out of spec due to DAC or signal generator failure.
-
Amplitude or Timing Errors: Faulty timing circuits or attenuator modules causing inconsistent waveform generation.
-
Interface Failures: GPIB, RS-232, or USB communication errors.
-
Power Supply Instability: Aging capacitors and voltage regulators leading to startup or regulation problems.
-
Control Panel Malfunctions: Unresponsive buttons, rotary encoders, or dim displays.
-
Internal Faults: Self-test errors, waveform distortion, or component drift from thermal aging.
Our Repair Process
We begin with a full diagnostic evaluation, testing all output ranges, time base accuracy, and modulation functions. Common issues are traced to the output generator module or power supply board. Our certified repair experts perform board-level repairs, replacing degraded capacitors, timing ICs, and analog amplifiers as needed.
Why Choose June Company?
-
Certified Repair Experts
-
Detailed Estimates with Quick Turnaround
-
90-Day Warranty on All Repairs
Request Service
Click Request Repair to begin your Fluke 5800A repair process. We’ll follow up with shipping instructions and evaluation details.
