Vanguard Instruments ATRT-01B TTR Tester Repair

Name: Vanguard Instruments ATRT-01B TTR Tester Repair
SKU: 13019
Price: 245.00 USD
Availability: InStock

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

June Company provides expert Vanguard Instruments ATRT-01B TTR repair and calibration. Our technicians specialize in ratio measurement recalibration, excitation source repair, test lead connector replacement, and traceable ratio accuracy verification.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description
Brand

Description

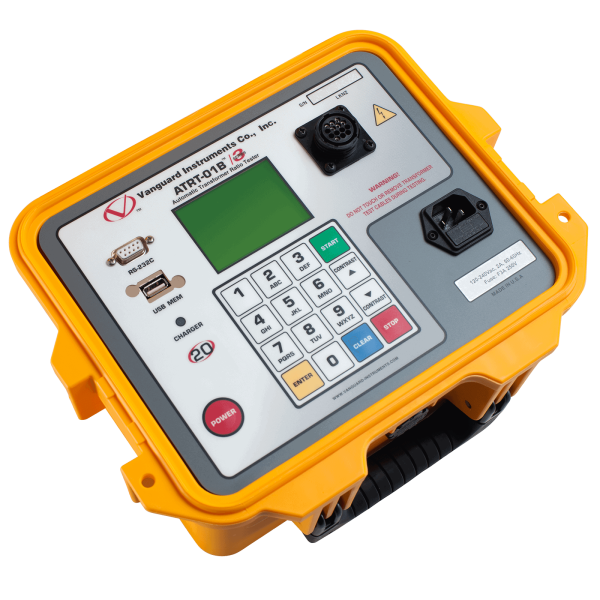

Vanguard Instruments ATRT-01B TTR Tester Repair

The Vanguard Instruments ATRT-01B TTR Tester is a transformer turns ratio tester – it energises a transformer winding and measures the ratio, excitation current and phase to confirm the windings and the tap changer are intact. The measurement is a ratio, so small errors in either winding measurement compound.

Certified technicians at June Company service the Vanguard Instruments ATRT-01B TTR Tester for utility transformer crews, substation technicians, and transformer manufacturers. Every instrument is repaired at component level and verified against reference standards before it ships back, with the measured results documented.

Common Vanguard Instruments ATRT-01B TTR Tester problems we fix

Phase deviation readings incorrect.
Test lead or clamp faults.
Output drive stage failure.
Automatic tap changer sequencing faults.
Display, keypad or front-panel faults.
GPIB, LAN, USB or remote-control faults – which breaks automated test sequences while the instrument still works from the front panel.
Ratio readings inaccurate – verified across the full range rather than at a single tap, since ratio errors that appear only on certain taps are the ones most often missed.
Excitation current measurement errors.

FAQs

Do you service instruments past manufacturer support? Yes. Much of what we repair is out of support, which is exactly where component-level work earns its keep.

What if it is not economical to repair? We tell you in the quote. The evaluation is free and there is no obligation to proceed.

Every repair carries a 90-day parts-and-labor warranty, with a firm quote before any work begins. Email us or submit a service request.

Brand

Vanguard Instruments Repair

Vanguard Instruments Company, Inc. (Vanguard) specializes in manufacturing test equipment for the electrical power industry. Their products are widely used for testing, maintaining, and diagnosing various components of electrical power systems, including transformers, circuit breakers, protective relays, and batteries. Here are some of the key products offered by Vanguard Instruments and their functionalities:

Transformer Test Equipment:
- TRM-203 Transformer Resistance Meter: Measures the winding resistance of transformers, ensuring proper connections and identifying potential issues such as shorted turns or open circuits.
- EZCT-2000B+ Automated CT Test Set: Designed for testing current transformers (CTs), this set performs ratio, polarity, and excitation tests to ensure the accuracy and reliability of CTs.
Circuit Breaker Analyzers:
- CT-7000 S2 Circuit Breaker Analyzer: Analyzes the timing and motion of circuit breakers to ensure they operate correctly under fault conditions. It measures parameters such as opening and closing times, contact bounce, and travel characteristics.
- CBA-32P Circuit Breaker Analyzer: Provides detailed analysis of circuit breaker performance, including contact resistance, timing, and motion analysis, helping to maintain the reliability of power distribution systems.
Protective Relay Test Equipment:
- Ranger™ PRM-5 Relay Test Set: Tests the functionality and accuracy of protective relays by simulating various fault conditions. It ensures relays operate correctly to protect electrical systems from faults and overloads.
- RTS-03 Single Phase Relay Test Set: A portable device for testing single-phase protective relays, ensuring their proper operation and calibration.
Battery Test Equipment:
- BITE3 Battery Impedance Tester: Measures the impedance, voltage, and temperature of battery cells and strings, helping to assess the condition and health of batteries in backup power systems.
- BTL-200 Battery Load Tester: Applies a load to battery cells and measures their response, helping to determine the capacity and performance of batteries.
Insulation Resistance Testers:
- IR-2A Insulation Resistance Tester: Measures the insulation resistance of electrical equipment, such as transformers, cables, and motors, to ensure the insulation is adequate to prevent leakage currents and potential failures.
Ground Resistance Testers:
- DLRO3 Digital Low Resistance Ohmmeter: Measures the resistance of grounding systems, ensuring proper grounding and safety in electrical installations.
Primary Injection Test Sets:
- Vanguard VPI-30 Primary Injection Test Set: Used for testing the performance and calibration of protective relays, circuit breakers, and current transformers by injecting high primary currents to simulate fault conditions.
TTR (Transformer Turns Ratio) Testers:
- ATR-1000A Automated TTR Tester: Measures the turns ratio of transformers, ensuring the correct operation and detecting possible winding issues.
Multifunction Test Sets:
- SMRT36 Smart Relay Test System: A versatile test system for testing protective relays, circuit breakers, and other electrical components, providing comprehensive testing capabilities in one device.

Vanguard Instruments' products are essential for utilities, industrial facilities, and service providers involved in the maintenance, testing, and troubleshooting of electrical power systems. Their equipment helps ensure the reliability, safety, and efficiency of electrical infrastructure and components.
