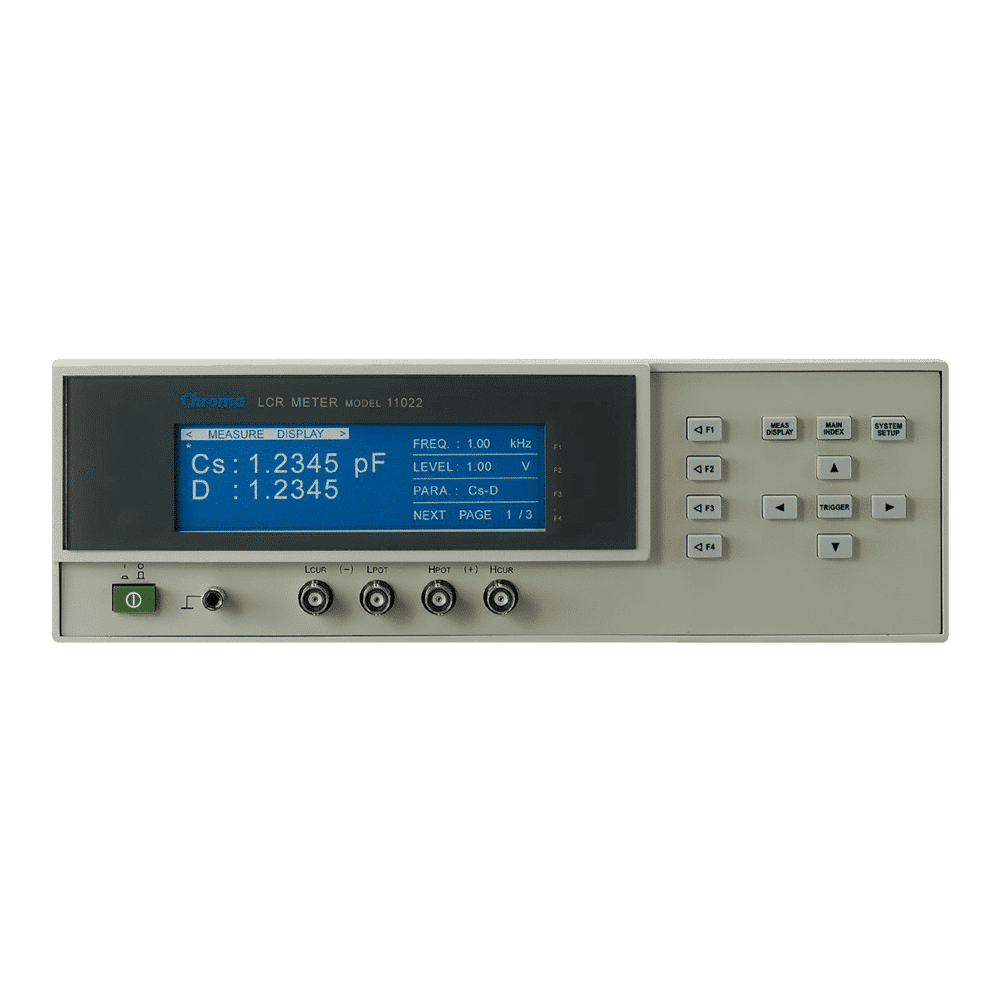

Chroma 11022 LCR Meter Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

Expert Chroma 11022 LCR repair and calibration with documented test results. Service covers measurement bridge recalibration, fixture interface restoration, frequency generator repair, and component measurement verification.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

Chroma 11022 LCR Meter Repair

The Chroma 11022 LCR Meter is an LCR meter – it applies an AC test signal and measures the resulting current and phase to derive inductance, capacitance and resistance. Because it resolves phase as well as magnitude, the test fixture and its compensation are part of the measurement rather than an accessory to it.

June Company’s certified technicians repair the Chroma 11022 LCR Meter for component manufacturers, electronics laboratories, incoming inspection teams, and production test departments. Every instrument is repaired at component level and verified against reference standards before it ships back, with the measured results documented.

Common Chroma 11022 LCR Meter problems we fix

Open and short compensation will not hold – the fixture and its contacts, which carry stray capacitance and residual inductance directly into every reading.
Measurement inaccurate at particular frequencies.
Phase angle or dissipation factor errors.
Test fixture or Kelvin contact faults.
DC bias source faults.
Test signal level inaccurate.
Readings drifted out of tolerance – corrected and verified against reference standards.
GPIB, LAN, USB or remote-control faults – which breaks automated test sequences while the instrument still works from the front panel.
Display, keypad or front-panel faults.

FAQs

Compensation will not hold and readings drift. What is that? Almost always the test fixture and its contacts. At these levels the fixture is part of the measurement, not an accessory to it.

Are all frequencies verified or just one? All of the ranges used. Accuracy is frequency-dependent and drift often shows at one end only.

Every repair carries a 90-day parts-and-labor warranty, with a firm quote before any work begins. Email us or submit a service request.
