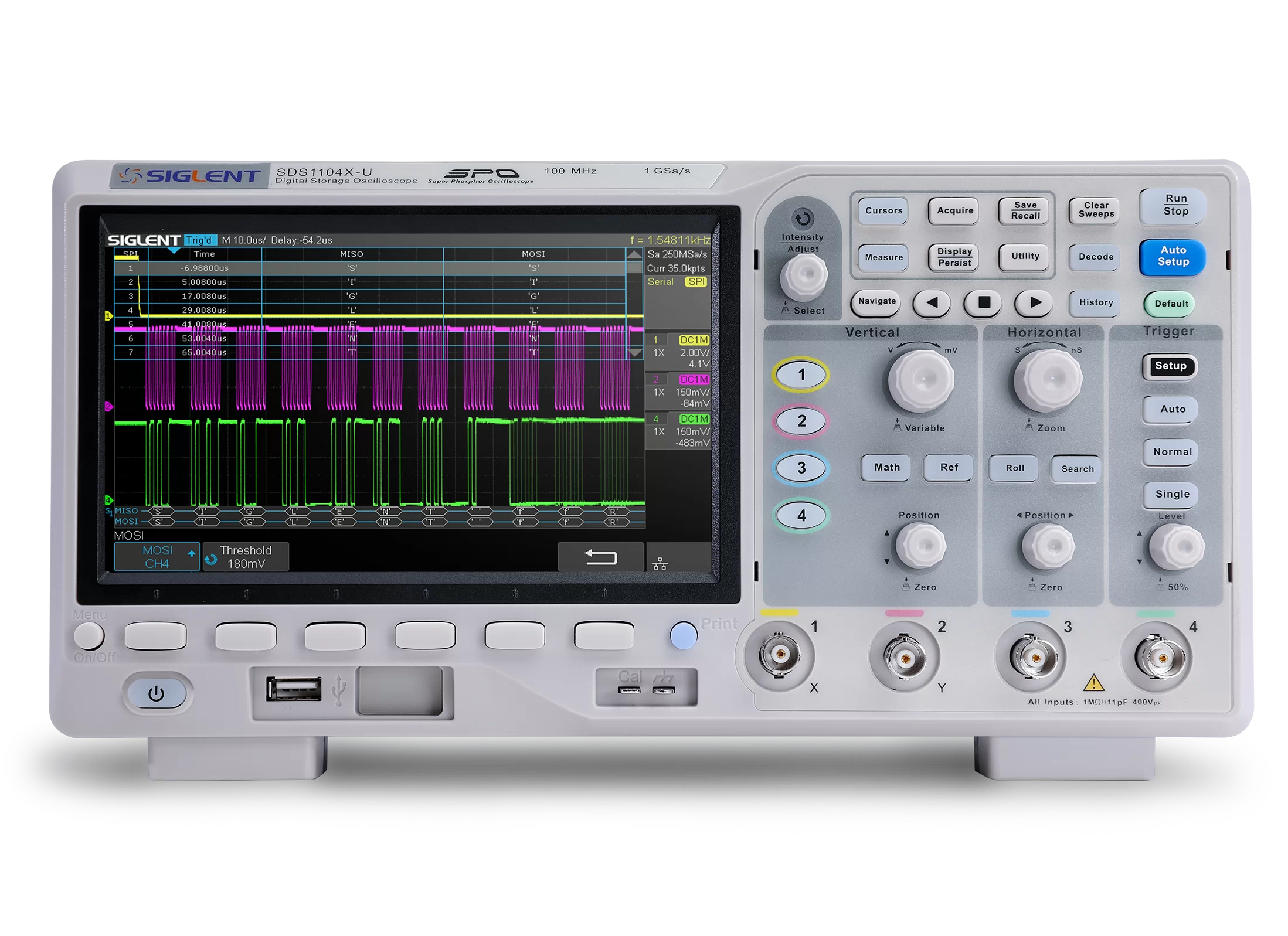

Siglent SDS1000X-U Oscilloscope Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

Get your Siglent SDS1000X-U repaired with certified accuracy and a 90-day warranty. Common issues include probe compensation drift and input channel damage from overvoltage.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

Siglent SDS1000X-U Oscilloscope Repair

The Siglent SDS1000X-U is a digital storage oscilloscope — a benchtop scope (to ~200 MHz) with a fast waveform-capture rate for embedded, education, and general design/debug. As a precision acquisition instrument, its faults concentrate in the analog front-end, the ADC/acquisition system, the trigger, and the display.

June Company repairs and calibrates the Siglent SDS1000X-U for embedded, lab, and education teams.

Common Siglent SDS1000X-U problems we fix

Probe-compensation drift — the front-end compensation drifting so traces are distorted, repaired and recalibrated.
Input-channel damage — a dead, noisy, or inaccurate channel from an over-range input, repaired.
Trigger or acquisition faults — unstable triggering or bad captures, corrected.
Bandwidth or vertical accuracy off — front-end drift, recalibrated.
Display or power faults — repaired.

FAQs

My SDS1000X-U traces look distorted or a channel is off — fixable? Yes. Front-end and acquisition faults are repairable, then the scope is recalibrated so vertical accuracy and bandwidth are restored, with a NIST-traceable certificate.

Is a damaged channel repairable? Yes — front-end repair and recalibration restore the channel.

Every repair includes NIST-traceable calibration and a 90-day parts-and-labor warranty. Email us or submit a service request.
