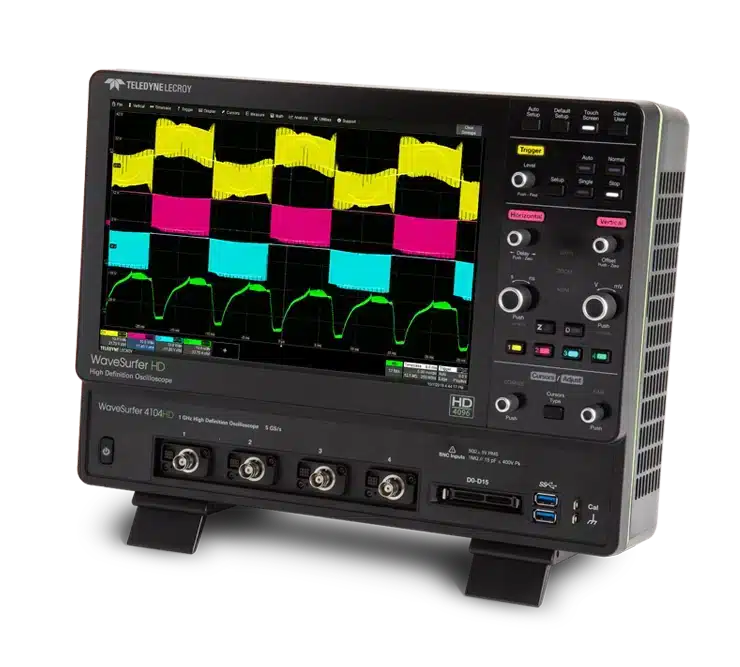

LeCroy WaveSurfer 4000HD Oscilloscope Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

Professional LeCroy repair by certified technicians. Repair includes verification of protocol decode and FFT analysis performance.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

LeCroy WaveSurfer 4000HD Oscilloscope Repair

The Teledyne LeCroy WaveSurfer 4000HD is a 12-bit high-definition oscilloscope — a 4-channel scope (to ~2.5 GHz) with high vertical resolution and a large touchscreen (MAUI) for power, embedded, and precision analysis work. As a precision acquisition instrument, its faults concentrate in the analog front-end, the high-resolution ADC/acquisition system, the trigger, and the touchscreen.

June Company repairs and calibrates the LeCroy WaveSurfer 4000HD for power, embedded, and precision-analysis teams.

Common LeCroy WaveSurfer 4000HD problems we fix

Protocol-decode / FFT analysis faults — the serial-decode or FFT/analysis function not working, repaired and recalibrated.
A channel dead, noisy, or inaccurate — analog front-end damage from overload, repaired.
Touchscreen unresponsive — the capacitive touch panel, repaired.
Trigger or acquisition faults — unstable triggering or bad captures, corrected.
Won’t boot or powers off — power/board faults.

FAQs

My decode/FFT or a channel look wrong — fixable? Yes. Analysis, front-end, and acquisition faults are repairable, then the scope is recalibrated so capture and vertical accuracy are restored, with a NIST-traceable certificate.

Is the touchscreen repairable? Yes — touch panel repair is routine.

Every repair includes NIST-traceable calibration and a 90-day parts-and-labor warranty. Email us or submit a service request.
