Tektronix DPO71604SX Oscilloscope Repair

$245.00 evaluation fee

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

Ship your Tektronix DPO71604SX to June Company for professional repair and NIST-traceable calibration. Repair includes verification of eye diagram and bandwidth performance.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

Tektronix DPO71604SX Oscilloscope Repair

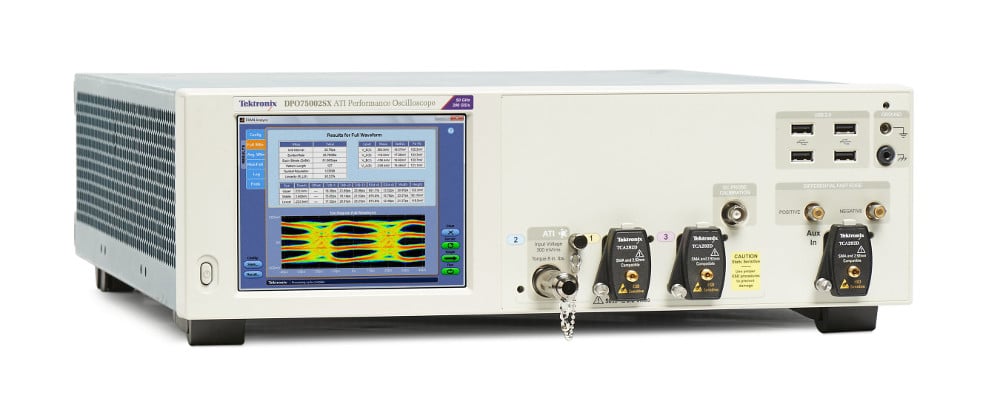

The Tektronix DPO71604SX is an ultra-high-performance ATI oscilloscope (16 GHz class) — a top-tier scope for high-speed serial, signal-integrity, and advanced research, often used in synchronized multi-unit configurations. As a precision high-bandwidth acquisition instrument, its faults concentrate in the analog front-end, the high-speed acquisition system, the trigger, and the synchronization/interface hardware.

June Company repairs and calibrates the Tektronix DPO71604SX for high-speed design and signal-integrity teams.

Common Tektronix DPO71604SX problems we fix

Eye-diagram / acquisition faults — acquisition or trigger faults degrading eye/serial results, repaired and recalibrated.
Input-channel restoration — a dead, noisy, or inaccurate channel from front-end damage (often an overload), repaired and recalibrated.
Trigger or sync faults — unstable triggering or multi-unit sync problems, corrected.
Won’t boot or powers off — power/board faults, repaired.
Display or interface faults.

FAQs

My eye diagrams or a channel look wrong — fixable? Yes. Front-end, acquisition, and trigger faults are repairable, then the scope is recalibrated so capture and vertical accuracy are restored, with a NIST-traceable certificate.

Do you handle the sync hardware? Yes — synchronization faults are diagnosed and repaired.

Every repair includes NIST-traceable calibration and a 90-day parts-and-labor warranty. Email us or submit a service request.
