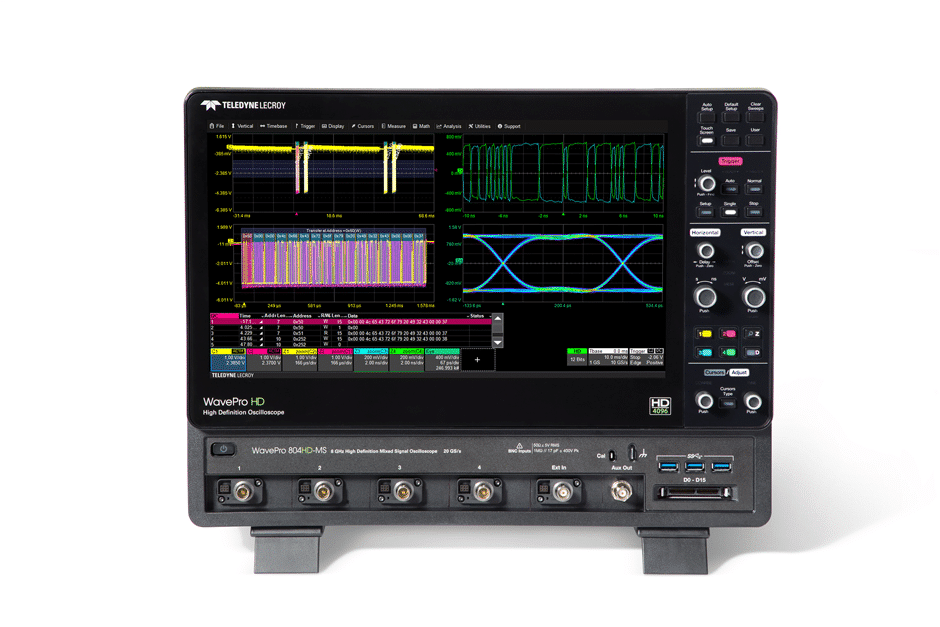

LeCroy WavePro HD Oscilloscope Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

Get your LeCroy repaired with certified accuracy and a 90-day warranty. Service covers input channel restoration, ADC board repair, trigger system recalibration, display replacement, and bandwidth verification.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

LeCroy WavePro HD Oscilloscope Repair

The LeCroy WavePro HD Oscilloscope is a bench oscilloscope. Its accuracy depends on the analogue front-end ahead of the digitiser – attenuators, relays and amplifiers that are switched every time a technician changes a range, and which therefore wear in a way the digital section never does.

June Company’s certified technicians repair the LeCroy WavePro HD Oscilloscope for electronics engineers, R&D laboratories, service departments, and production test teams. Every instrument is repaired at component level and verified against reference standards before it ships back, with the measured results documented.

Common LeCroy WavePro HD Oscilloscope problems we fix

Attenuator relays intermittent – these click on every range change and eventually stop making reliable contact, which shows as an amplitude error on some ranges and not others.
Vertical amplitude accuracy drifted.
Timebase accuracy out of specification.
Trigger unstable or not arming.
Display, backlight or touchscreen faults.
Cooling fan or thermal shutdown.
Internal power supply faults.
GPIB, LAN, USB or remote-control faults – which breaks automated test sequences while the instrument still works from the front panel.
Channel dead, noisy, or inaccurate – input front-end damage, usually from an over-range input, repaired at component level.

FAQs

Do you service instruments past manufacturer support? Yes. Much of what we repair is out of support, which is exactly where component-level work earns its keep.

What if it is not economical to repair? We tell you in the quote. The evaluation is free and there is no obligation to proceed.

Every repair carries a 90-day parts-and-labor warranty, with a firm quote before any work begins. Email us or submit a service request.

Brand

LeCroy Repair

LeCroy, a subsidiary of Teledyne Technologies, is a leading provider of oscilloscopes, protocol analyzers, and other test and measurement solutions. Their products are designed for a wide range of applications, including electronics design, manufacturing, and research and development. Here’s an overview of key LeCroy product categories and their functionalities: 1. Oscilloscopes WavePro HD Series Features: High-definition oscilloscopes with up to 12-bit resolution and large memory depth. Applications: Signal analysis, debugging, and design verification in electronics and embedded systems. WaveRunner Series Features: Versatile oscilloscopes offering a mix of performance and flexibility, with bandwidths up to 4 GHz. Applications: General-purpose test and measurement, including embedded system testing, power electronics, and automotive applications. HDO Series (High Definition Oscilloscopes) Features: High-definition oscilloscopes with 12-bit resolution for precise measurement. Applications: Power integrity analysis, medical device testing, and automotive electronics. WaveSurfer Series Features: Compact and user-friendly oscilloscopes with up to 1 GHz bandwidth. Applications: Educational use, troubleshooting, and design validation. WaveMaster Series Features: High-performance oscilloscopes with bandwidths up to 65 GHz and advanced analysis capabilities. Applications: High-speed serial data analysis, RF and microwave testing, and high-frequency signal integrity. 2. Protocol Analyzers SierraNet Series Features: Network protocol analyzers for high-speed Ethernet and Fibre Channel analysis. Applications: Network troubleshooting, performance analysis, and compliance testing. Voyager Series Features: Protocol analyzers for USB, Thunderbolt, and PCIe interfaces. Applications: Embedded system design, consumer electronics, and computer hardware testing. Mercury Series Features: USB protocol analyzers for monitoring and analyzing USB traffic. Applications: USB device development, debugging, and compliance testing. 3. Signal Integrity Test Solutions SPARQ Series Features: Signal integrity network analyzers that provide S-parameters quickly and accurately. Applications: High-speed digital design, signal integrity analysis, and PCB design. 4. Waveform Generators WaveStation Series Features: Function/arbitrary waveform generators with multiple channels and a variety of waveforms. Applications: Signal simulation, testing, and validation in R&D and educational environments. 5. Mixed Signal Oscilloscopes (MSO) HDO Series MSO Features: Combines analog and digital channels for comprehensive mixed-signal analysis. Applications: Embedded system debugging, digital and analog circuit testing. 6. Power Analysis Solutions Motor Drive Analyzers Features: Specialized oscilloscopes for analyzing and debugging motor drive systems. Applications: Electric vehicle development, industrial motor control, and power electronics. Power Analyzer Software Features: Software tools for performing detailed power measurements and analysis. Applications: Power supply design, power efficiency testing, and energy consumption analysis. 7. High-Speed Digital Test Solutions Serial Data Analyzers Features: Tools for analyzing high-speed serial data signals, including eye diagrams and jitter analysis. Applications: High-speed communication testing, data integrity analysis, and compliance testing.
