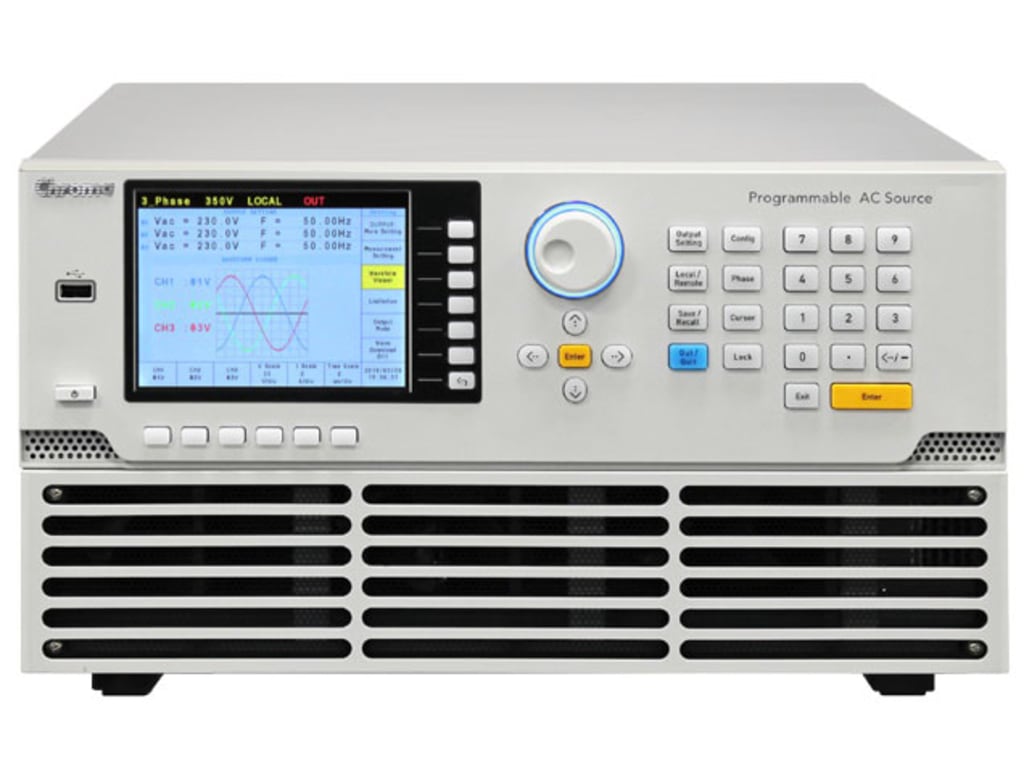

Chroma 61609 AC Source Repair

$245.00

🛡️ 90-Day Warranty ✓ Fee Credited to Repair ⚡ No Forms Needed

Expert Chroma 61609 AC repair and calibration with documented test results. Our repair process covers diagnostics through final harmonic generation verification.

Helpful Resources

📋 How It Works

Submit Request – Pay evaluation fee & provide equipment details
Ship to Us – Send your equipment to our Oregon facility
We Evaluate – Detailed diagnosis & repair estimate
Fee Credited – Your evaluation fee applies to repair cost
We Repair – Professional repair with 90-day warranty

🔧 Fast Turnaround: Most repairs are completed within 1–3 business days.
📏 Precision Calibration: NIST-traceable calibrations included for most repairs.
🛡️ Warranty: 90-day warranty on all repairs.
📝 Transparency: Detailed evaluation and repair estimate before work begins.

✓ Evaluation Fee Credited Toward Repair

This evaluation fee is applied as credit toward your final repair cost. After we evaluate your equipment, you'll receive a detailed estimate before any repair work begins.

Description

Chroma 61609 AC Source Repair

The Chroma 61609 is a programmable AC power source — it generates clean, programmable AC voltage, frequency, and waveform (including programmable harmonics and 400 Hz) with built-in power measurement, for testing products against varying line conditions. As an AC-generation instrument, its faults concentrate in the output amplifier stage, waveform/regulation circuitry, and measurement.

June Company repairs and calibrates the Chroma 61609 for product-test and production teams.

Common Chroma 61609 problems we fix

Harmonic-generation faults — the programmable harmonic/waveform synthesis not producing correct output, repaired.
No output or won’t reach setpoint — AC output-amplifier failure, repaired so it sources full programmed voltage and current.
Waveform distorted or frequency off — waveform-generation or regulation degradation, recalibrated for clean AC.
Power measurement off — the built-in metering drifting, recalibrated.
Programming or fan/protection faults.

FAQs

My 61609 harmonic or waveform output is wrong — fixable? Yes. Waveform/harmonic-generation faults are repairable, then verified so it delivers a clean, correct AC output at the programmed setpoint, with a NIST-traceable certificate.

Is the power measurement verified? Yes — the metering is recalibrated against our standards.

Every repair includes NIST-traceable calibration and a 90-day parts-and-labor warranty. Email us or submit a service request.
